Loadsensing Titlemeter Configuration

This guide walks through the configuration process for the Loadsensing Tiltmeter, ensuring seamless setup for accurate, real-time structural monitoring.

1. 1. Download and Install the Worldsensing App

   1. Download the Worldsensing app from the Google Play Store.
   2. Once the download and installation are complete, open the app

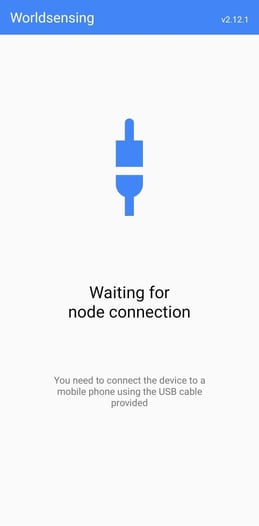

2. Connect the Tiltmeter to Your Mobile Device

1. Use a USB cable to connect one end to your mobile device and the other to the Tiltmeter.

1. ---

2. 3. Check for Updates

   1. The tiltmeter could be out of sync with the current timezone of the mobile device. a message stating "Current time in node doesn't match the one in the phone." proceed by selecting "Update Time".
      1. Select "Set Time".
      2. Select "OK".
   2. In the app, select “Firmware Update” to check if the Tiltmeter is up to date.
      1. If an update is available, install it.
      2. If no update is required, select “Close”.

4. Configure the Tiltmeter Using the Setup Wizard

1. Select “Setup Wizard” in the app.
2. Tap “Next” to validate the Tiltmeter’s location.
3. Ensure the mobile device is connected to the internet.
4. When prompted for location access, select “While using the App” or “Only this time” to grant location permission.
5. The device’s location will appear on the map. Select “Next” to continue.

5. Perform a Sample Test

Select “Take a Sample” to test the Tiltmeter.
Once the results appear, select “Next".

6. Select the Region

1. 1. 1. United States: Select “FCC”.
      2. Other Regions: Choose the corresponding option. Contact Specto Technology Support if the Region selection is unknown
   2. Select “Next”.

7. Configure the CMT Edge Radio

1. 1. Select “CMT Edge Radio”, then tap “Next”.
   2. Set the Maximum Spreading Factor to the default number, “9”.

1. 1. Ensure the Channels selects “0 - Freq…”.
   2. Ensure “ADR” is toggled on (it should appear blue).

1. 8. Run an Online Test

   1. Select “Online Test”.
      1. If the mobile device or gateway is offline, select “Link Check Test” to verify the connection
   2. Enter the Gateway ID for the CMT Edge Dataserver.
   3. Enter the Gateway Password for the CMT Edge Dataserver.
   4. Select “Next”.

9. Final Configuration Steps

1. Choose the maximum number of devices that will connect to the Gateway.
   1. After setup is complete, confirm/Change the reporting period on the gateway setting and select the reading frequency for the Tiltmeter (default recommendation is 1 hour).
2. Tap “Next”

10. Complete the Setup

1. 1. The Tiltmeter is now operational.
   2. Select “Close” to finish the setup.
