Topcon Configuration & Communication Settings - GeoExplorer (ARTICLE)

GeoExplorer Configuarion

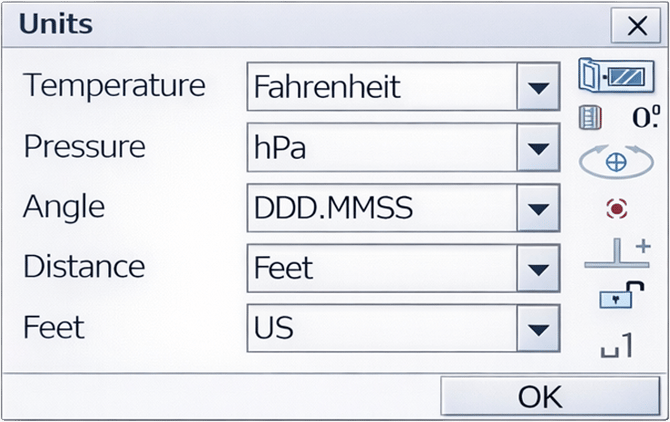

Config >  Units

mceclip0 (5)

On the home screen, press the CONFIG button

Press the 5.Comms button

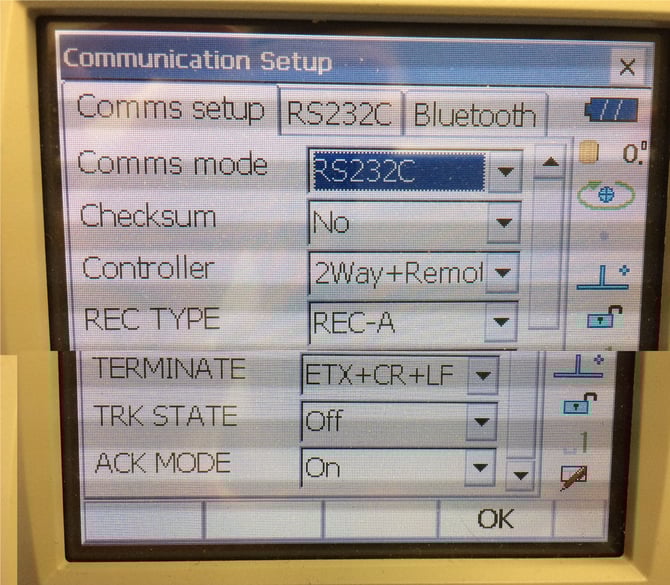

Under the "Comms setup" tab, ensure settings match those shown in the photos below (it should be the default, already)

blobid0 (3)

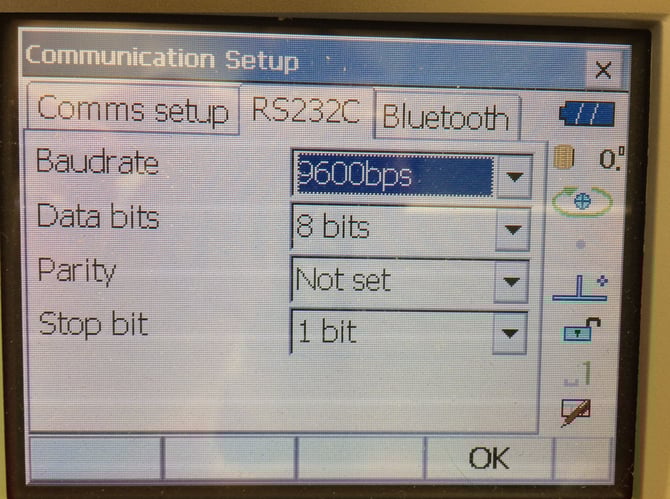

Under the "RS232C" tab, ensure settings match those shown in the photos below (it should be the default, already)

blobid1 (2)

GeoExplorer communications settings

  1. On the home screen, press the CONFIG button and press the 5.Comms button

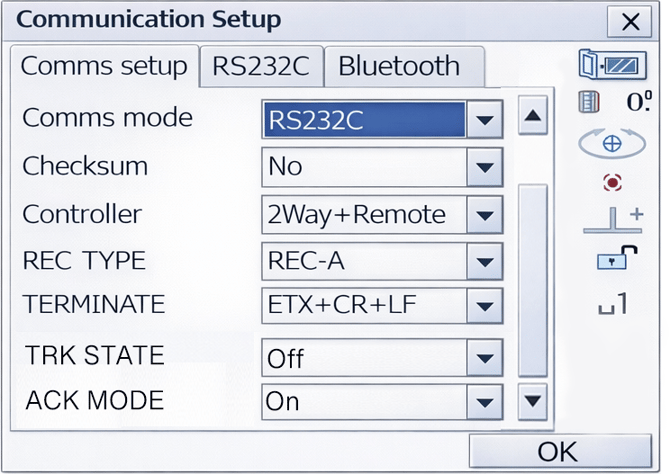

  2. Click COMMS SETUP and make sure all settings match the screenshot below (NOTE:  These are the default settings)

    blobid0 (1)

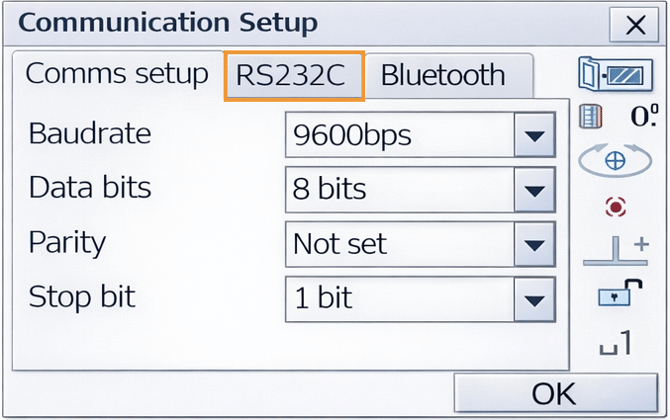

  3. Click RS232C and make sure all settings match the screenshot below (NOTE:  These are the default settings)

    blobid1
