Topcon AMTS (MSAXII) Settings and Configuration

This article contains the ideal settings for Topcon communications, EDM, motor, and unit settings for Specto Topcon applications

  1. Main Menu
  2. EDM
  3. Comms
  4. Units
  5. Motor Settings

Images in this article reflect the desired settings for all Specto Topcon Applications

1. Main Menus

panel_1

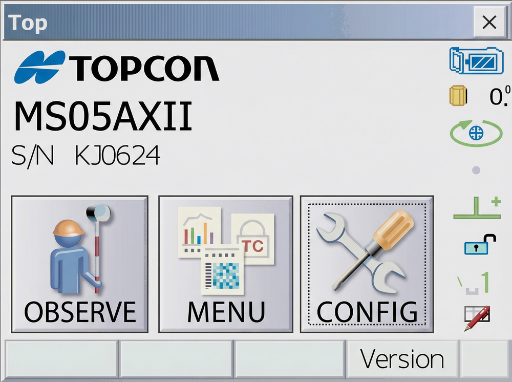

Press Config. If you're in the observation screen, you can press the X in the top right to return.

panel_2

In the configuration menu, you'll see options for several menus, of which the most important to check are 4.EDM, 5.Comms, 6.Units, and 9.Motor

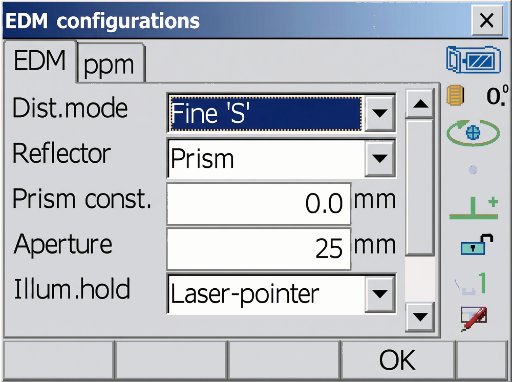

2.EDM

panel_3

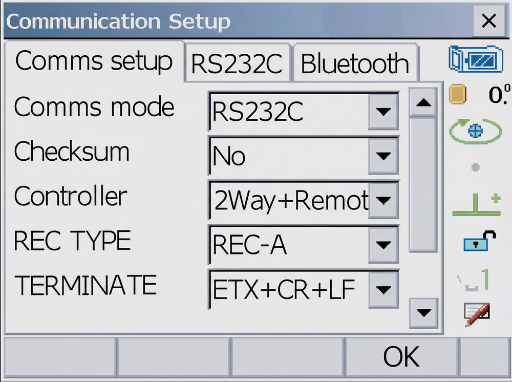

3.Comms

panel_4panel_5

panel_6

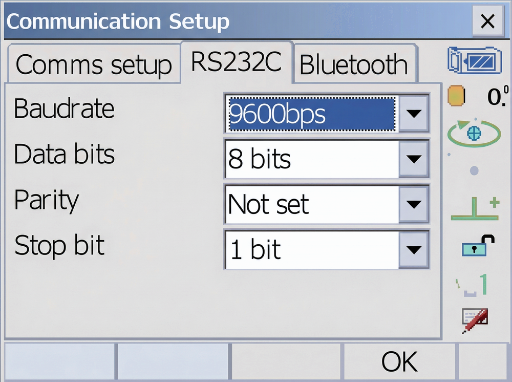

RS232C Settings

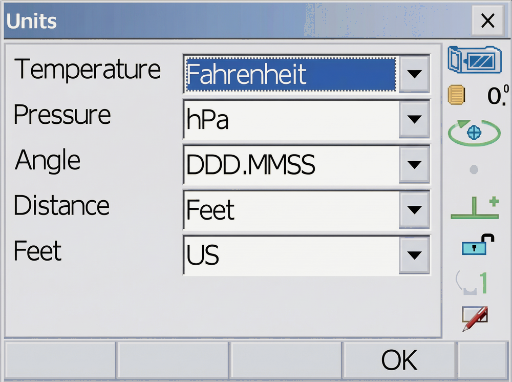

4.Units

panel_7

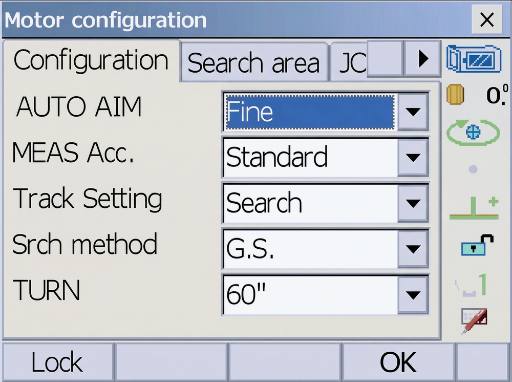

5. Motor

panel_8
