Loadsensing Event Detection TM Setup (ARTICLE)

Set Event Detection limits form the GW

1. Login to the GW and Select the Tilt90e node you wish to program..

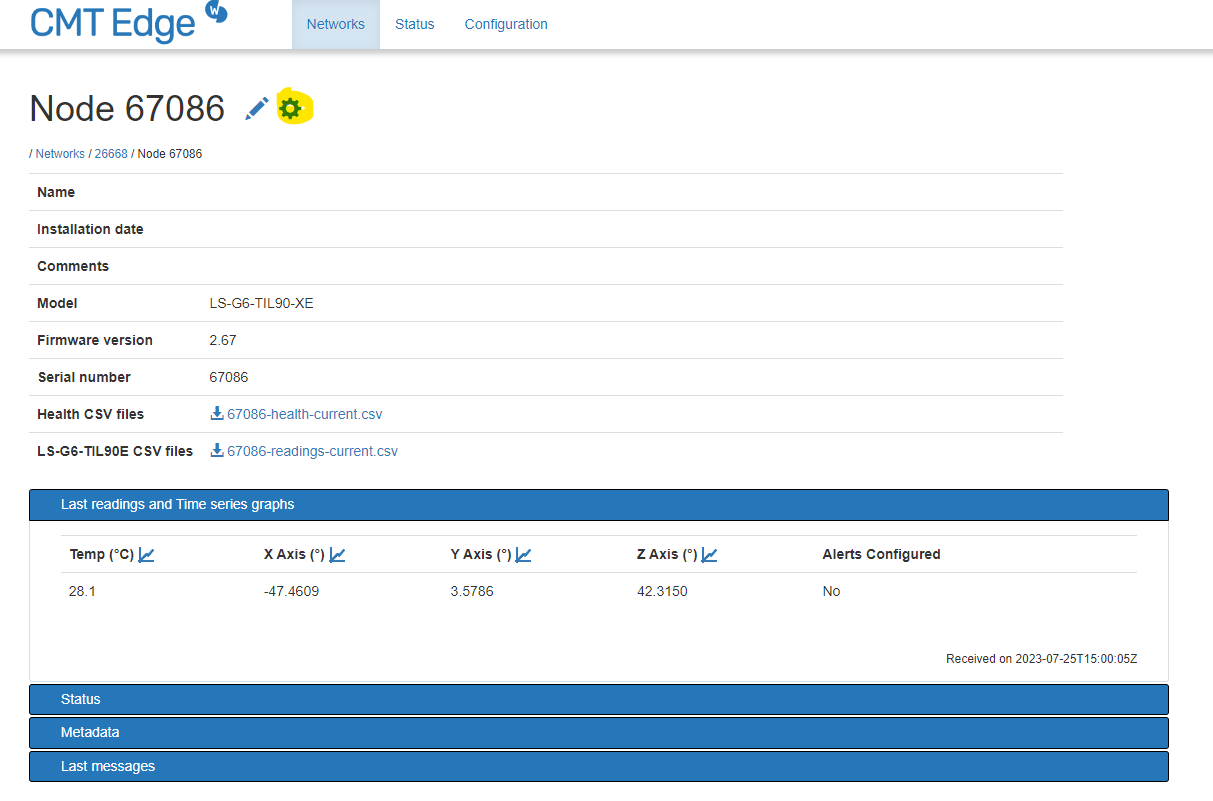

2. Click on the cog next to the node ID
3.

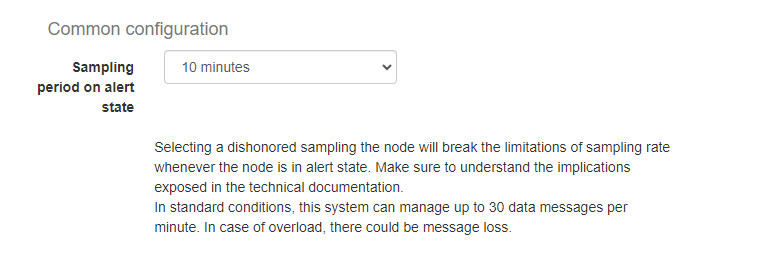

4. On this screen begin by choosing the sampling rate the node should use after it exceeds the trigger level
5.

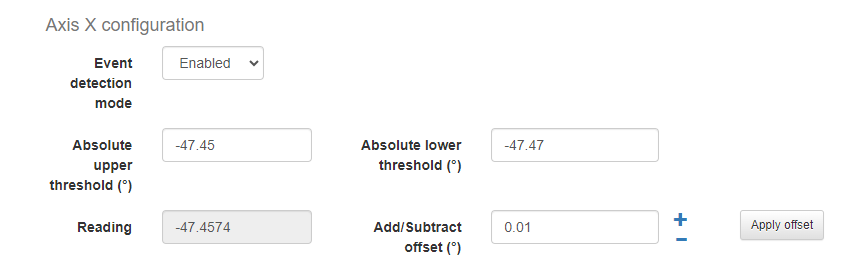

6. Next you can enable the event detection for each axis. The limits are set using the raw absolute tilt values but you can use the Add/subtract offset to easily apply upper and lower thresholds. Enter in the value above or below the current reading that you wish to use as the threshold then click apply offset to have the GW calculate the upper and lower thresholds.
7.
8. Once you have done this for each axis you want to trigger off of, click Save and Apply
9. From the Network page you can see the status of the setting change. At first it will show orange while the change is pending.
10.
11. Then it will show grey when it is complete. Please note this change will only happen as fast as the current sampling rate of the node.
12.
