How to connect 4-20mA sensors to Sensemetrics/iTwinIoT

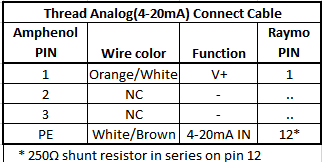

If you using a Specto provided 4-20mA shunt cable set, use the following pinouts for Raymo or Amphenol connectors

To wire a standard 12 pin Thread Connect cable with bare ends using the following:

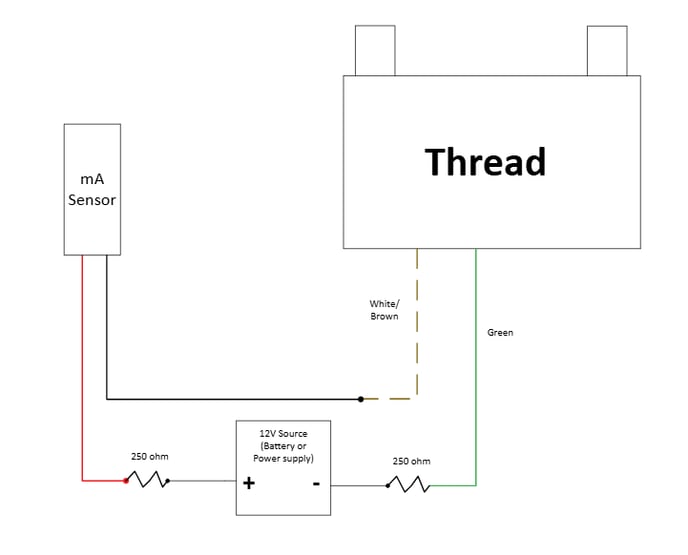

Active Sensor wiring:

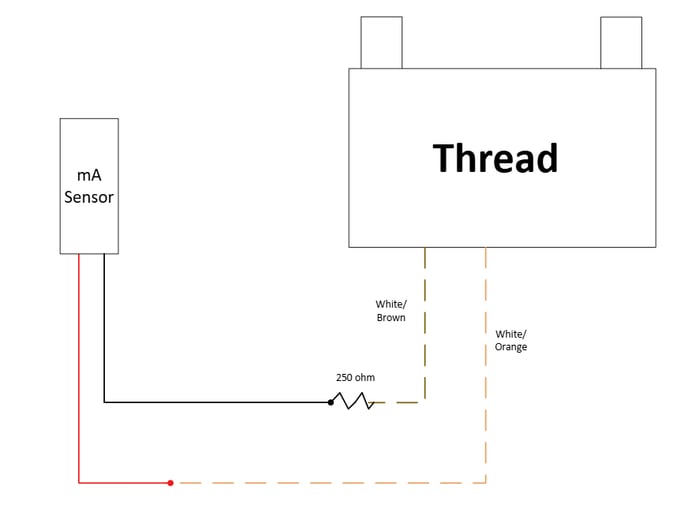

Passive Sensor Wiring

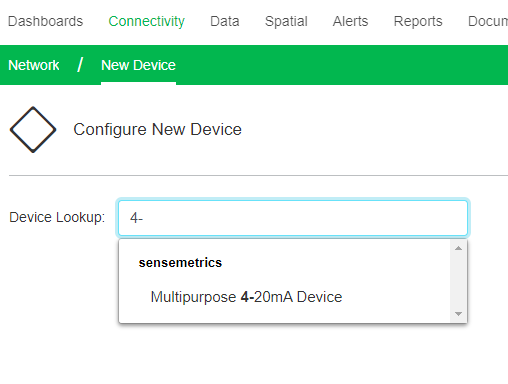

  1. In Sensemetrics you will select a "Multipurpose 4-20mA Device"

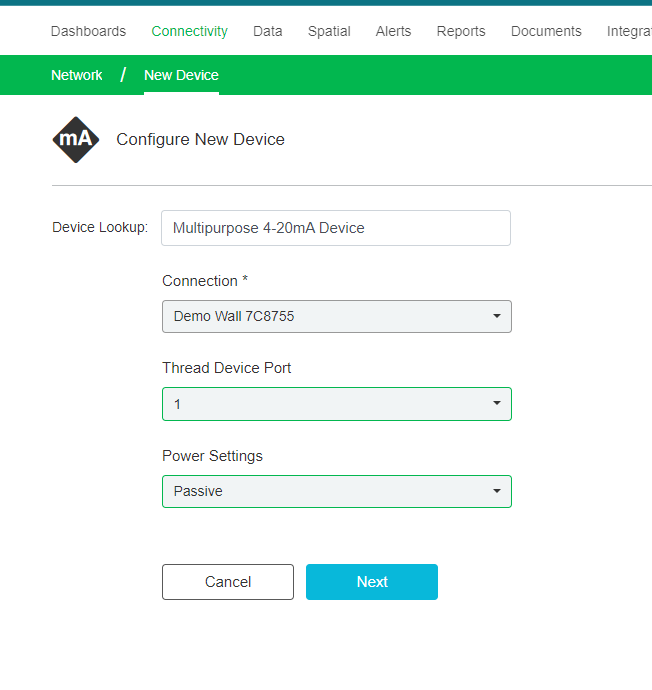

  2. Choose your Thread, the port number, and whether it is active or passive with the duplicator that should be passive.

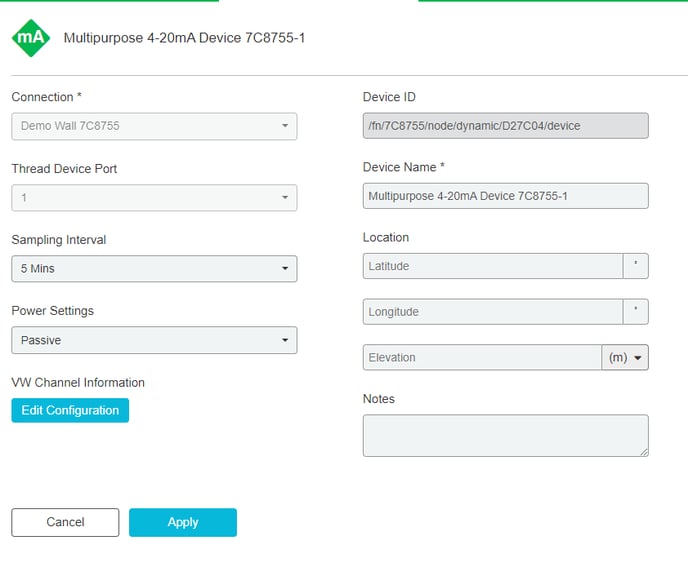

  3. You then choose your sampling interval and Click Edit Configuration under "VW Channel Information"(ignore that it says VW, it's a hold over some other sensors)

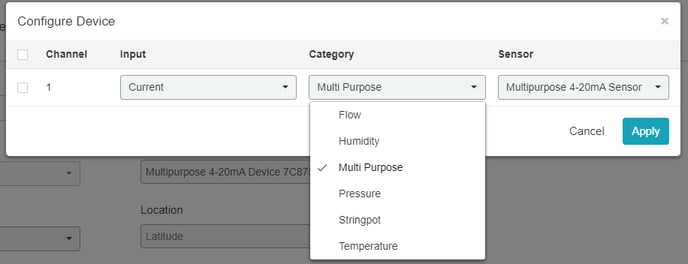

  4. From here you can choose a specific sensor type if yours is listed. or leave it as Multipurpose if yours is not.

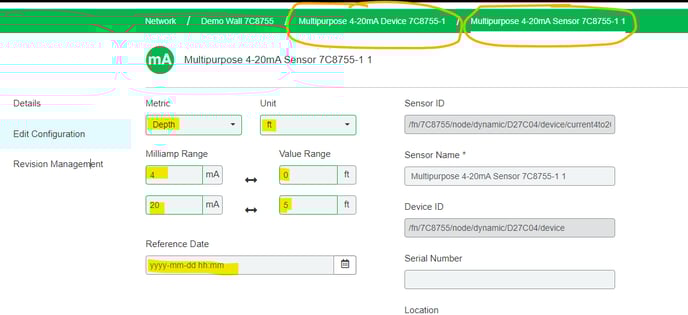

  5. If using Multipurpose, navigate to the Multipurpose sensor / Multipurpose sensor, then Edit Configuration and update all the highlighted fields:
