      Change Sampling Rate LSG6 (ARTICLE)



      To change the sampling rate of a LS node simply login to your GW.

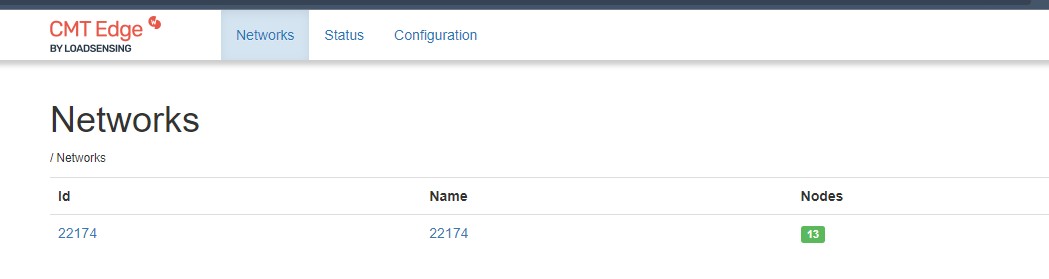

      Select the Network ID with the Nodes you wish to update.

      CMT Edge Networks 22174 Networks Status Configuration Name 22174

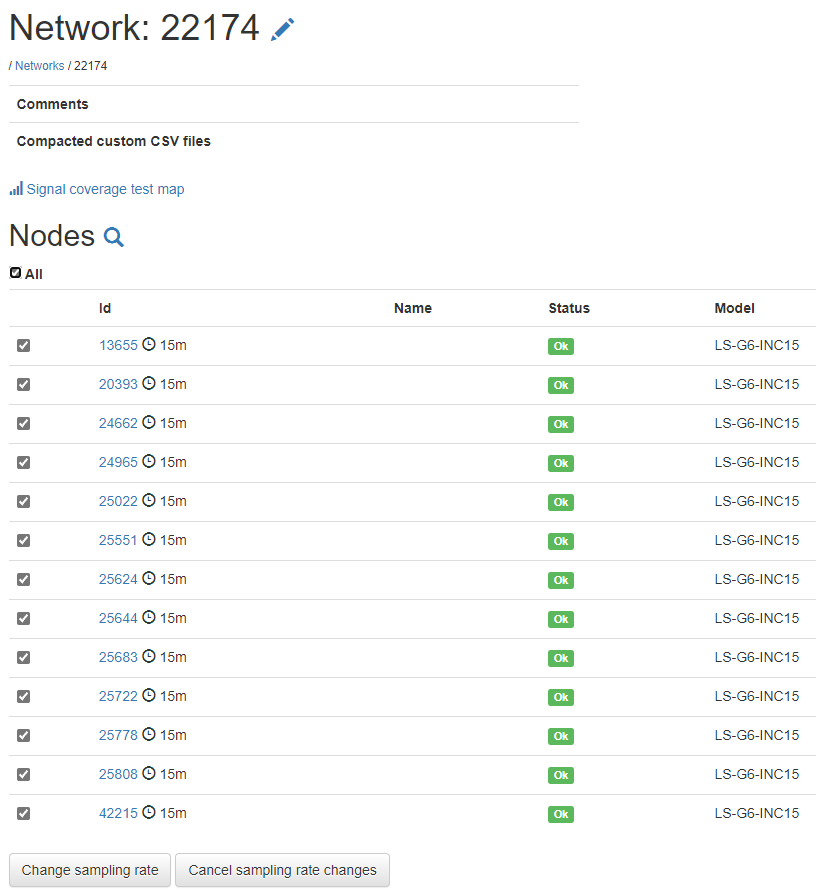

      Click the checkbox next to each node you wish to change the sampling rate on.

      Then click Change sampling rate at the bottom of the page.

      Network: \ Networks / 22174 Comments 22174 Compacted custom C SV files Signal coverage test map Nodes Q 0 All 13655015m 20393 015m 24662 015m 24965 015m 25022 015m 25551 015m 25624 015m 25644 015m 25683 015m 25722 015m 25778 015m 25808 015m 42215015m Name LS-G6-lNC15 LS-G6-lNC15 LS-G6-lNC15 LS-G6-lNC15 LS.G6.lNC15 LS-G6-lNC15 LS-G6-lNC15 LS-G6-lNC15 LS-G6-lNC15 LS.G6.lNC15 LS-G6-lNC15 LS-G6-lNC15 LS-G6-lNC15 Change sampling rate cancel sampling rate changes

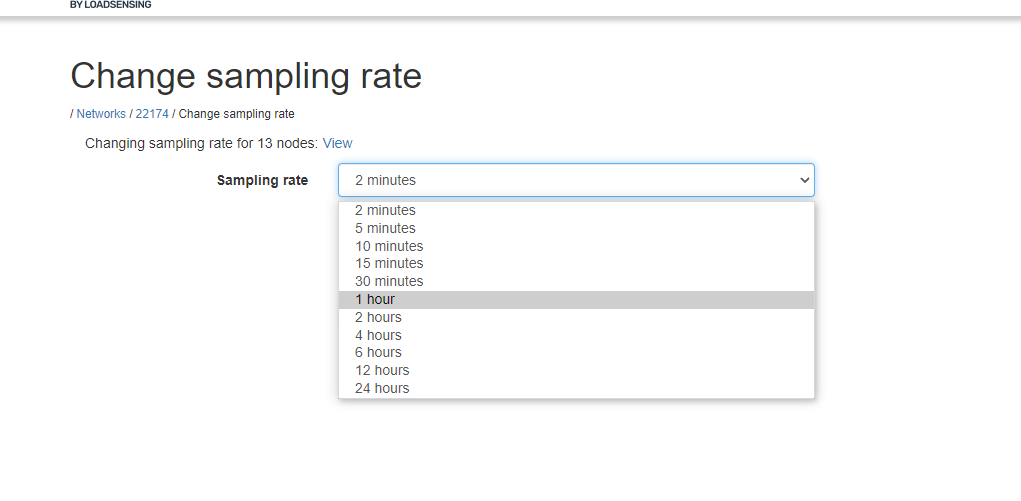

      Select the rate you want from the dropdown and click save

      Change sampling rate Nehvorks / 22174 rate Changing sampling rate tor 13 nodes View Sampling rate 2 minutes 2 minutes S minutes 10 minutes 15 minutes 30 minutes 2 nours a hours 6 nours 12 hours 24 hours

      The nodes will now show a yellow clock indicating the new rate being sent to them. The clocks will turn black once the change has been applied to the nodes.
